Service / Insulated Panels
Walk-in cooler panels, freezer panels, and refrigerated wall panels from Norbec and Kingspan, stocked and shipped from Mississauga. Buy them as part of a WFE build, or supply-only for your own crew. Every panel ships with the spec documentation your inspector, insurer, and engineer will ask for.
How to buy
Same Norbec and Kingspan panel systems on every path. The difference is who hangs them.
The default for restaurants, grocers, and processors. We size the envelope, supply the panel system, hang the door, and install it with our own crew in about two weeks from quote approval. One quote, one warranty.
Walk-in cooler buildsHVAC contractors, general contractors, and facility teams buy cooler and freezer panels from WFE for their own installs. Quoted per project with a cut list, joint detail, and delivery across Ontario. Door sections and trims included on request.
Request a panel quoteNew-surplus Norbec pallets and used walk-in panel kits with a matched door sell as priced listings, pick-up in Mississauga. Stock rotates; the catalog shows what is on the floor today.
See panels for saleThickness & R-Value
R-values below are Kingspan QuadCore published figures. Norbec polyurethane panels land in the same band per thickness; we quote the installed-wall value on your drawing.
| Thickness | R-value | Typical use |
|---|---|---|
| 2″ | R-18 | Process rooms, partitions, above-freezing work areas |
| 2.75″ | R-24.75 | Light-duty cooler walls where space is tight |
| 3″ | R-27 | Process rooms, prep rooms, small coolers |
| 4″ | R-36 | Standard walk-in cooler panel (+1°C to +4°C) |
| 5″ | R-45 | Walk-in freezer panel, high-ambient coolers |
| 6″ | R-54 | Freezer panel standard, blast-freeze zones |
| 8″ | R-72 | Refrigerated warehouses, low-temp distribution |
By application
Spec sheet
The three questions every engineer, inspector, and insurer asks about a refrigerated wall panel, answered in writing.
Cores: high-density polyurethane (Norbec) or QuadCore (Kingspan). Concealed cam-lock fastening, factory-applied joint sealant, continuous vapour barrier.
Manufacturer data sheets for the specific panel on your quote ship with the submittal package.
Why WFE for panels
From stock to standing
Real WFE stock and real WFE installs. No renders on this page.
Norbec and Kingspan QuadCore bundles on the floor in Mississauga. Standard modules ship from stock; cut-to-plan orders are quoted with lead time.
A warehouse-scale freezer envelope staged on site. Long-span ceiling panels and 6 inch walls arrive sequenced to the install drawing.

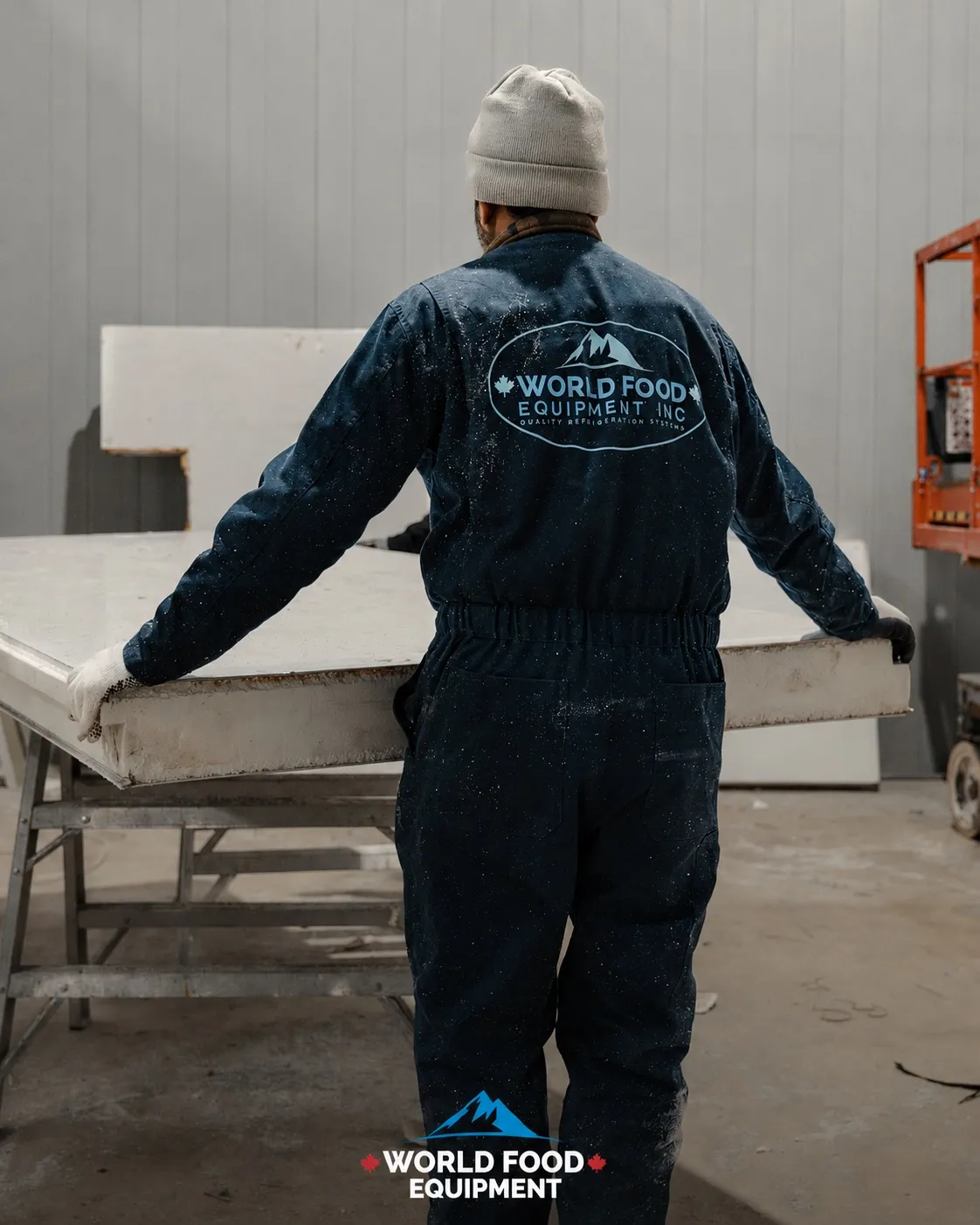

Cam-lock joints pulled tight from the lift. The same crew that sizes the envelope hangs it.
Deep Dive
Walk-in cooler panels and walk-in freezer panels come off the same production line. What changes below 0°C is the thickness and the details around it.
A cooler panel at 4″ holds an R-27 to R-36 wall against a +1°C to +4°C setpoint. A freezer panel steps up to 5″ or 6″ (R-45 to R-54), always sits on an insulated floor panel, and pairs with a heated door frame so the gasket never freezes to the jamb.
If you are choosing between the two boxes, the cooler vs freezer guide covers the full physics, and the panel R-value explainer covers why the federal floor is R-25 for coolers and R-32 for freezers.
Refrigerated wall panels are not only for walk-in boxes. The same insulated metal panel system builds temperature-controlled process rooms, pharmaceutical cold rooms held at 2°C to 8°C, and refrigerated warehouses at distribution scale.
Those rooms change the spec in three places: facings (stainless or PVC for washdown), ceiling spans (long Kingspan modules or a suspended ceiling grid), and thickness (5″ to 8″ where the room runs cold and large). See custom cold storage for turnkey rooms from 500 to 20,000+ sq ft, and the pharmaceutical market page for the GDP-documented version.
A walk-in cooler door panel is a door pre-hung in its own insulated panel section, so it drops into the wall run like any other module. We supply Coldmatic swing and sliding doors in a matching panel with Kason hardware, a magnetic perimeter gasket on coolers, and a heated frame on freezers.
Replacement panels for an existing box are quoted from the manufacturer, thickness, and joint profile of what is in the wall today. Send photos of the joint and a measurement of the panel face and we will tell you whether a like-for-like panel exists or whether the run needs a transition section. Damaged doors can often be swapped as a used walk-in door from stock while a new one is on order.
Used walk-in cooler panels are worth buying when the foam stayed dry and the cam-locks still pull tight. Panels that sat outdoors, or came out of a box with a failed vapour seal, carry absorbed moisture that no longer insulates.
WFE sells used panel kits and new-surplus pallets as priced catalog listings: a used walk-in cooler panel kit with a matched door and a new-surplus Norbec panel pallet. Both are photographed on the floor in Mississauga. Panel counts are verified with you at the warehouse before payment.
